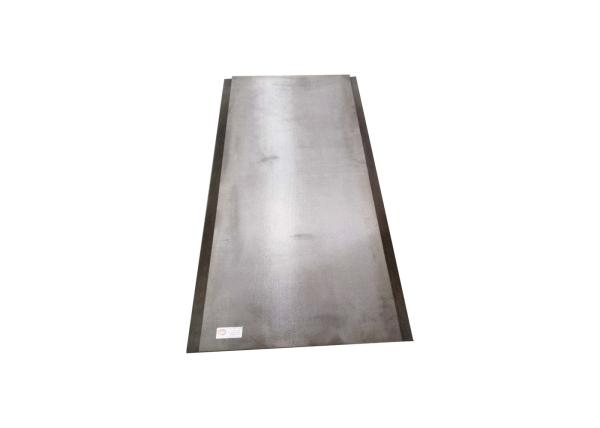

Graphite Hard Felt Sheet Features:

High rigidity /high strength

Excellent ablation resistance
Thermal shock resistance
Airflow erosion resistance
Thermal insulation performance
No short fiber drop
Low thermal conductivity
Self-supporting

Graphite hard felt (commonly known as carbon fiber composite hard felt, cured felt, carbon fiber-reinforced, etc.) is made by special process that integrates graphite paper, polyacrylonitrile-based carbon felt, and polyacrylonitrile-based carbon cloth into one body, curing After molding, then primary and secondary high-temperature treatment.

Graphite Felt Application:

1. Aerospace industry: hot isostatic pressing furnace, heat treatment, sintering, brazing, hot pressing furnace

2. Semiconductor industry: drawing silicon single crystal furnace, vacuum metallurgy

3. Metal heat treatment: heat treatment furnace, sintering furnace, brazing furnace

4. Carbon fiber production: induction heating or resistance heating carbonization furnace, graphitization furnace

5. The production of composite materials: pyrolytic carbon and pyrolytic graphite, chemical vapor deposition, or other composite materials

6. Energy materials: vanadium or other redox battery materials

Polyacrylonitrile-based graphite felt is stronger and more resistant to oxidation than viscose-based graphite felt, but it has poor flexibility, large bulk density, and good thermal insulation performance. In addition to their high purity, high-temperature resistance, corrosion resistance, and non-melting characteristics, they also have the advantages of elasticity, foldability, tailoring, and sewing with graphite yarn.

The main use of Graphite Hard Felt Sheet is as a thermal insulation material for single crystal silicon smelting furnace. In the chemical industry, it can be used as a filter material for high purity corrosive chemical reagents. Under the non-oxidizing atmosphere, the temperature of the graphite felt can reach 2850℃.

Physical and chemical indicators:

Temperature resistance: 1800 ℃ in a vacuum, 2850 ℃ in inert gas

Hunan MTR New Material Technology Co., Ltd. has perfect production technology and equipment, we can customize products of various sizes and shapes to meet your needs for various vacuum and high-temperature furnace insulation materials. Sincerely welcome your inquiries.

Hunan MTR New Material Technology Co., Ltd. (formerly Zhuzhou Green Carbon Fiber Products Co., Ltd.) is a high-temperature furnace thermal insulation material production plant! Our company adheres to the corporate philosophy of singularity, focus and professionalism, and is committed to the continuous development and application of thermal insulation material technology.

The company’s main products include graphite hard felt, reinforced composite hard felt, multi-type composite hard felt (made in an overall shape), graphite felt, high-temperature carbon felt, and other thermal field insulation materials. The rigid felt series have a rigidity that traditional insulation materials do not have. Supporting, high strength, no short fiber shedding, low thermal conductivity and other advantages, more energy-saving, environmentally friendly, easy to disassemble, easy to maintain, and can extend the service life of the high-temperature furnace. The product is suitable for all kinds of high-temperature vacuum furnace equipment (such as: single crystal growth furnace, polycrystalline casting furnace, polycrystalline reduction furnace, polycrystalline ingot furnace, vacuum sintering furnace, hot pressing furnace, heat balance furnace, electromagnetic induction furnace, medium and high-frequency Induction furnaces, non-oxidizing atmosphere high-temperature equipment, high-purity silicon hydrogenation furnaces, etc.) are widely used in solar energy, vacuum metallurgy, new chemical materials, atomic energy, semiconductors, new electronic energy and other fields.

Customized drawings can be made to produce various non-standard and special-shaped geometric shapes such as flat plates, discs, cones (discs), and cylinders! Can provide the overall installation service of the hot cell.
